Used for connecting drip irrigation tapes, with various styles available. Free samples can be provided.
Product Introduction：
Micro-irrigation pipe accessories are key components of micro-irrigation systems, mostly made of plastic (such as PE, PVC), including drippers, pipe fittings, valves, etc. They can accurately control water flow, realize functions such as drip irrigation and micro-spraying, and are characterized by water-saving, labor-saving, and adaptability to a variety of crops. They are widely used in greenhouses, orchards, nurseries, and other scenes to improve irrigation efficiency and crop yields.
Type: Other Watering & Irrigation
Place of Origin: Tianjin, China
Brand Name: DAYU
Model Number: Irrigation Pipe Fitting
Material: Plastic, PP, POM, ABS
Size:16mm、20mm
Certification:ISO9001
Usage: Disinfection, Fertilization, Irrigation
Function: Connect Drip Pipe
Application: Public Green Space, Home Gardening, Agricultural
Transport Package: Carton
Color: Black
Sample: Offer free samples
Product advantages:
Drip irrigation accessories are made of new materials with tight fit; they are injection molded using precision molds with good water sealing performance; the products are diverse in types and structures, the structures are scientific and reasonable, and the installation is convenient, which can meet the various needs of users for drip irrigation accessories.
Product Categories:
Product Name | Specification | Application |
Barbed bypass(offtake) | Φ16/Φ20 | Used to connect the main pipe and PE pipe |
Barbed bypass(offtake) tee | Φ16 | Used to connect the main pipe and PE pipe |

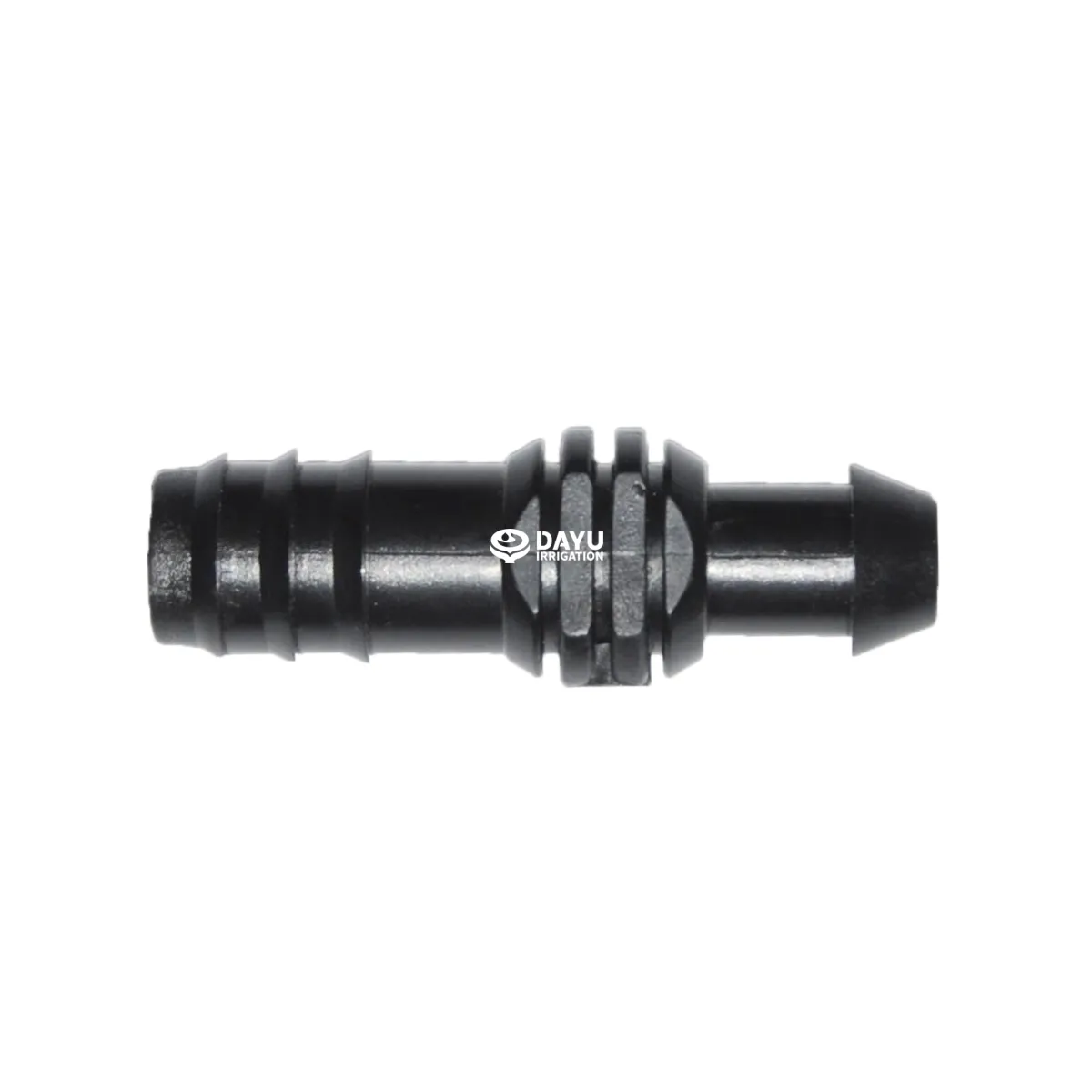

Barbed direct | Φ16/Φ20 | Used to connect and repair PE pipe |
Barb reducing | Φ16*12 Φ20*16 | It is used to connect PE pipes with different diameters |

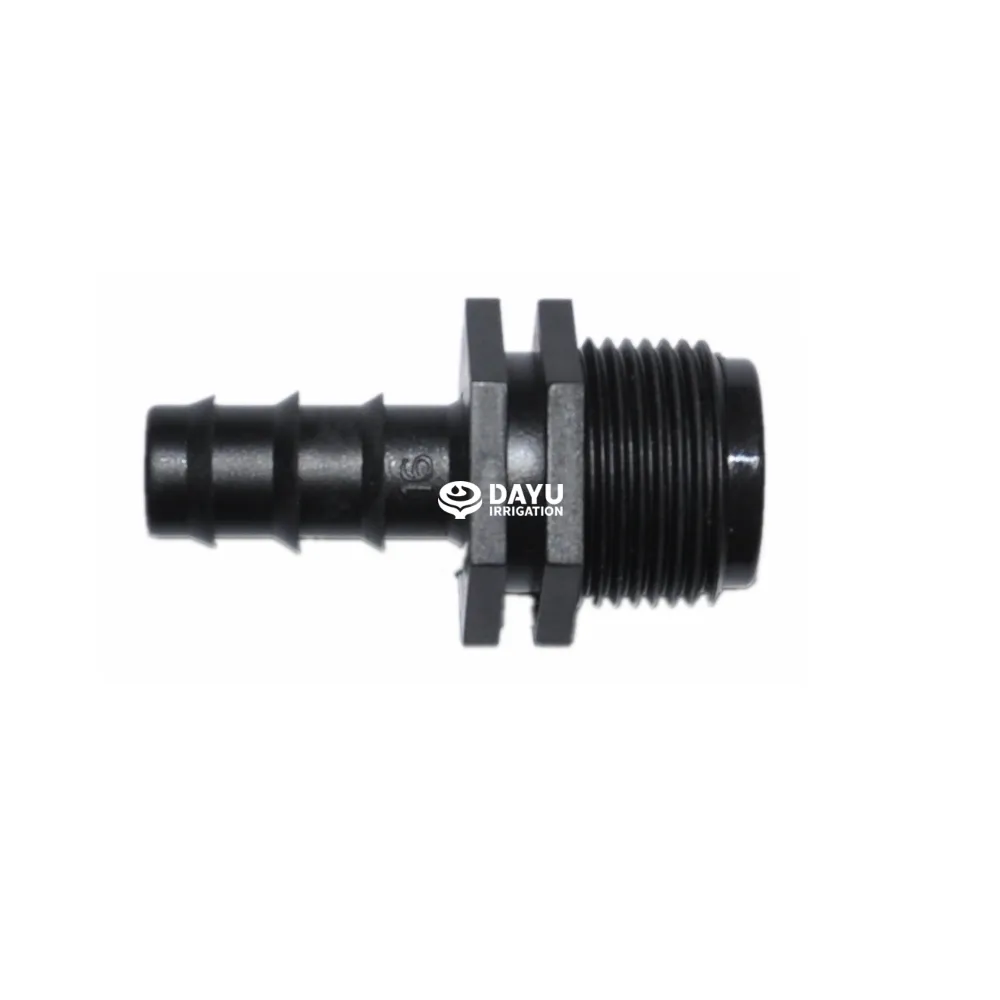

Barbed outer filament | Φ16*1/2" Φ20*1/2" | Used for connecting PE pipe and internal thread pipe fittings |

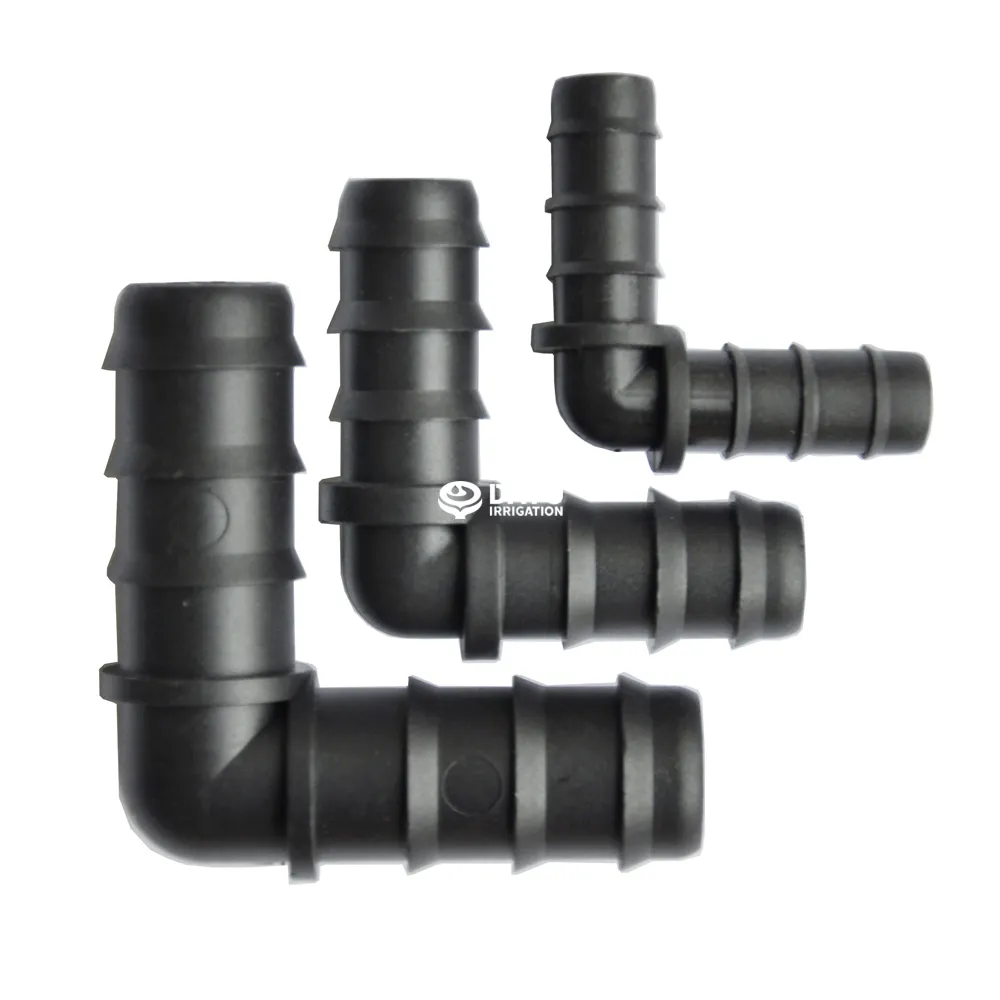

Barbed elbow | Φ16/Φ20 | Turning angle for PE pipe |
Barbed wire elbow | Φ16*1/2" | Used for connecting PE pipe and internal thread pipe fittings |

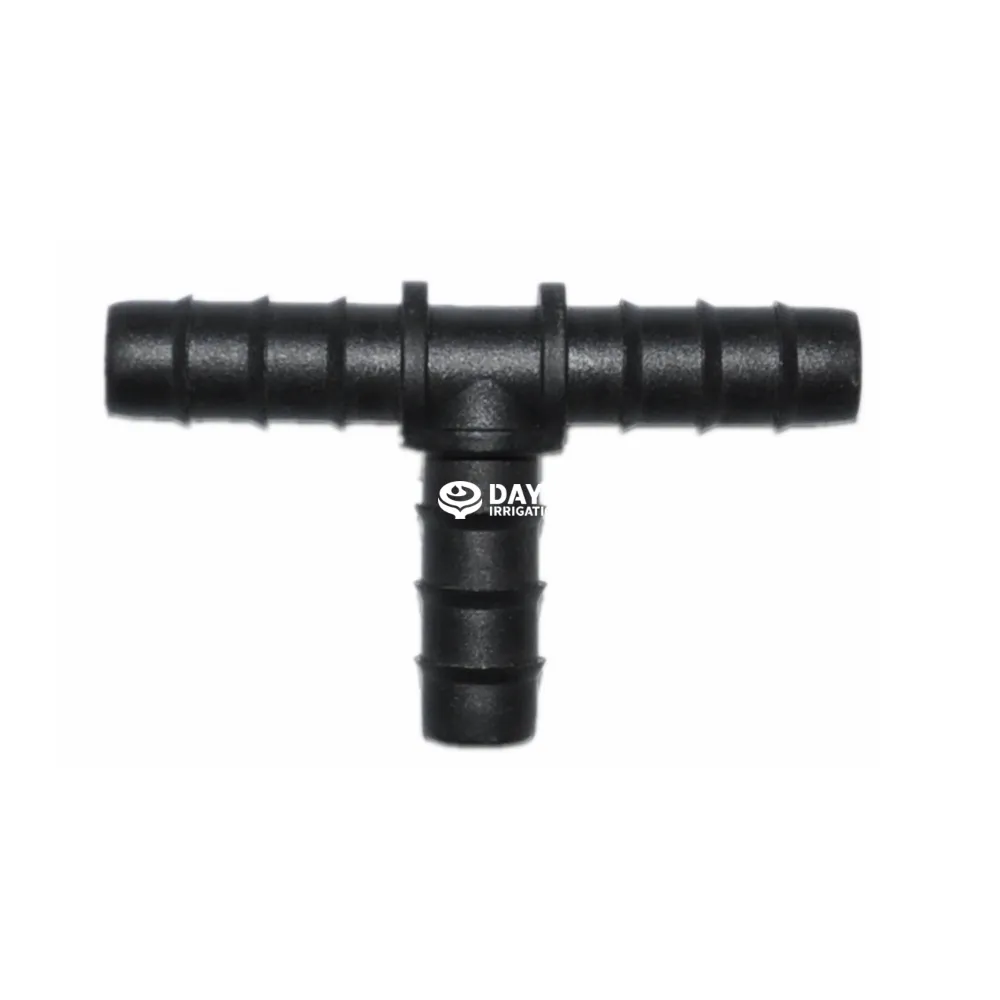

Barbed tee | Φ16/Φ20 | For PE pipe branch |

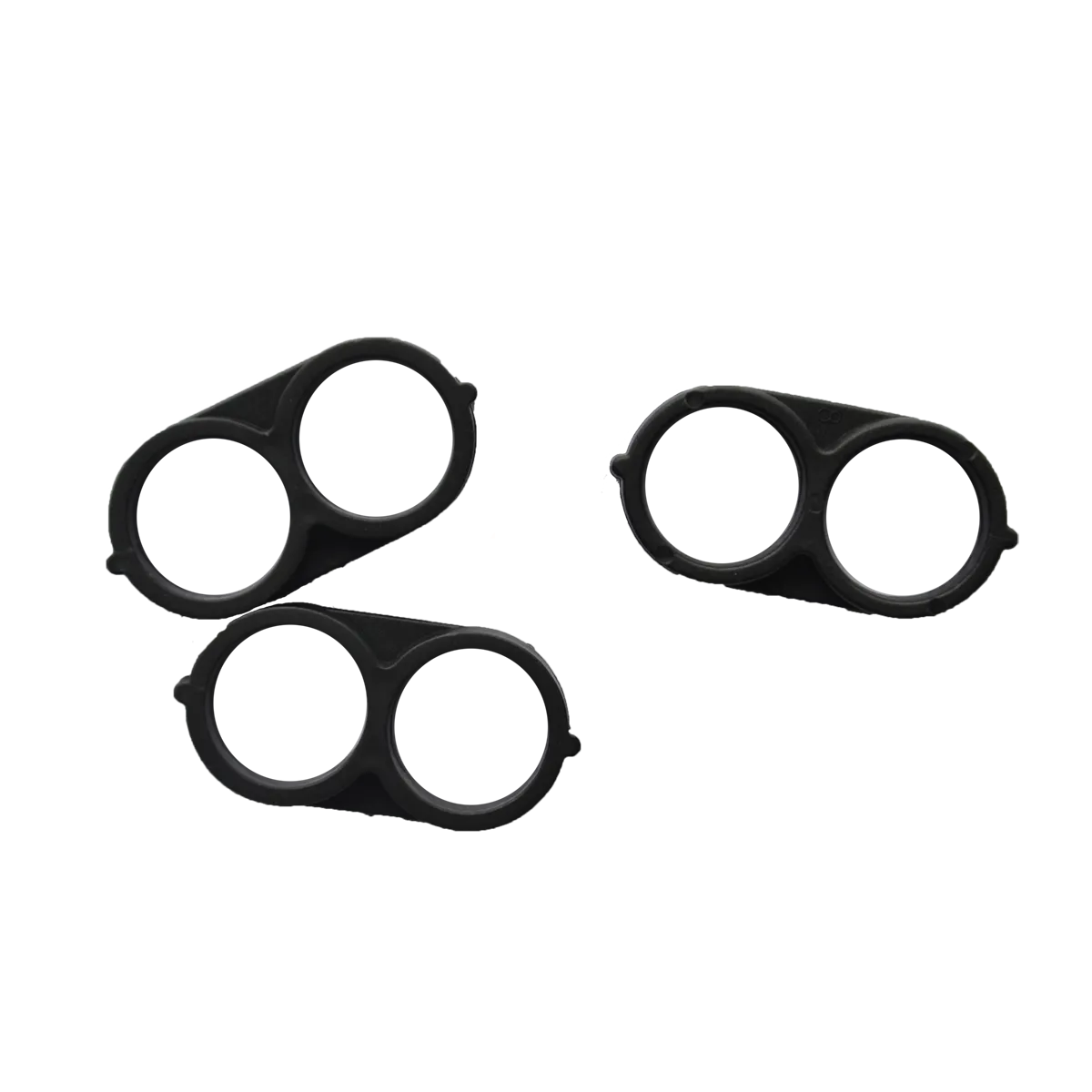

8-shaped plug | Φ16/Φ20 | Used to seal the end of drip irrigation pipe |
Barbed plug | Φ16/Φ20 | It is used to seal the end of PE pipe to prevent water from flowing out |
Hanging fixed pipe clamp | Φ16 | Used for hanging and fixing drip irrigation pipe and PE pipe |
Plastic coated hose starting joint | 3/8"*1/2" | It is used to start plastic coated hose |
