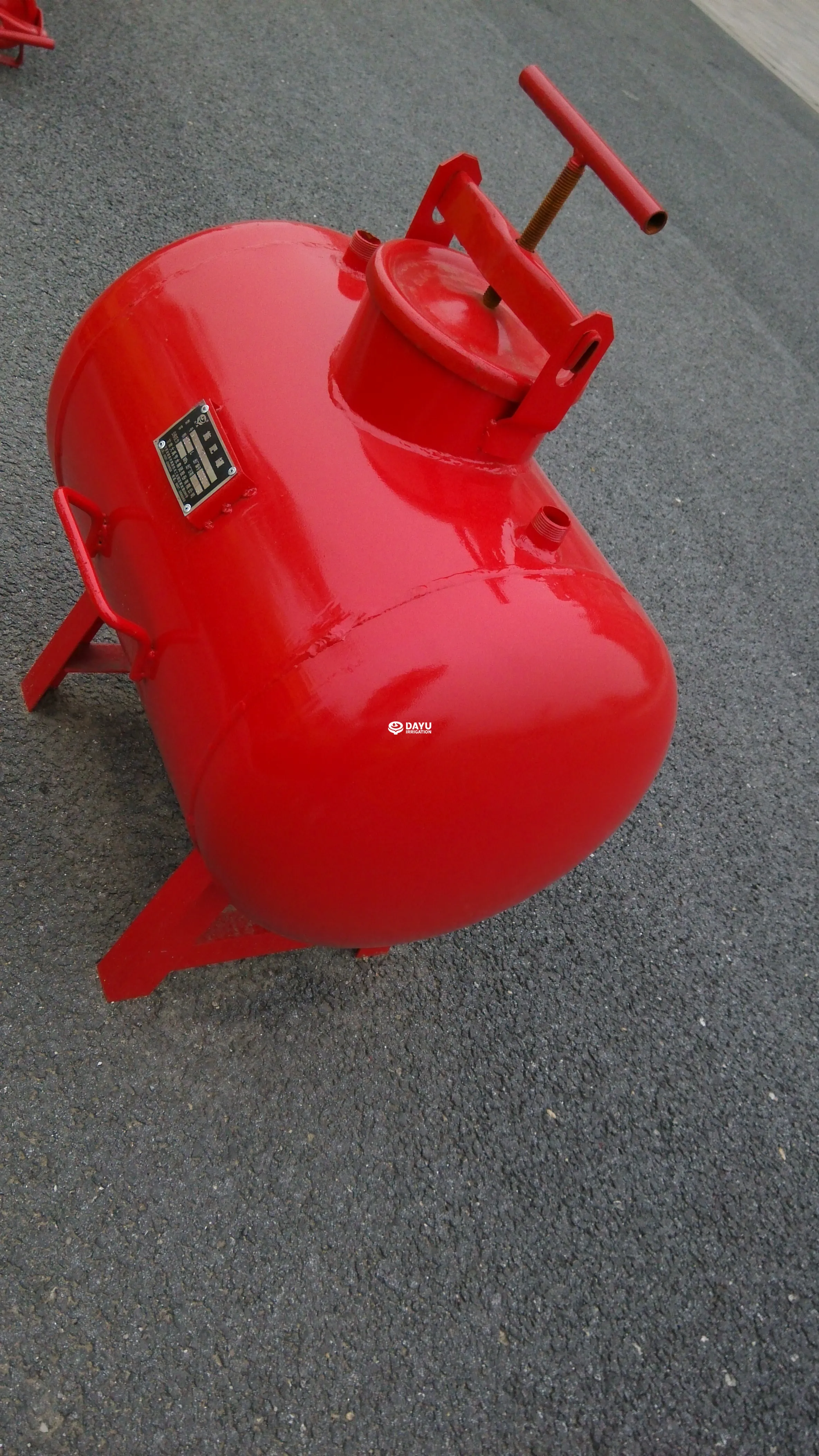

The fertilization tank is a device used for precise fertilization in agricultural irrigation systems. It is made of metal. The fertilizer solution is evenly mixed into the irrigation water through pressure difference to achieve water-fertilizer integration.
The fertilizing tank mainly provides a simplified method to distribute fertilizer and other chemicals, and then apply fertilizer through drip irrigation or sprinkler irrigation system.
Bypass fertilization tank, no power; iron structure, polyester powder spraying, pressure and corrosion resistance; simple structure, durable.
Application: fertilizer or chemicals directly into the water flow.
Design pressure: 0.7MPa
Capacity: 60l-1000l

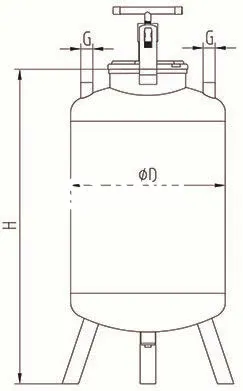

| Dimension data | |||||
| Model number | Capacity(L) | D mm | H mm | Connection mode | Pipe size |
| FSF60 | 60 | 377 | 800 | Thread | G1/2” |
| FSF100 | 100 | 426 | 900 | Thread | G3/4” |
| FSF200 | 200 | 608 | 975 | Thread | G1” |
| FSF300 | 300 | 758 | 1000 | Thread | G1” |
| FSF600 | 600 | 1008 | 1100 | Thread | G1” |
| FSF1000 | 1000 | 1210 | 1200 | Thread | G1” |
