The Pull Buckle Fitting for Driplines can quickly connect the belt body through the buckle structure, which can quickly connect, fix or adjust the belt body. The pull-buckle plug can also seal the end of the drip irrigation belt. It is often used to fix the drip irrigation belt and nozzle pipe in agricultural irrigation, which is convenient for disassembly and maintenance.
Type: Other Watering & Irrigation
Place of Origin: Tianjin, China
Brand Name: DAYU
Model Number: Irrigation Pipe Fitting
Material: Plastic, PP, POM, ABS
Size:16mm、20mm
Certification:ISO9001
Usage: Disinfection, Fertilization, Irrigation
Function: Connect Drip Pipe
Application: Public Green Space, Home Gardening, Agricultural
Transport Package: Carton
Color: Black
Sample: Offer free samples
Product Classification：
Product Name | Specification | Application |

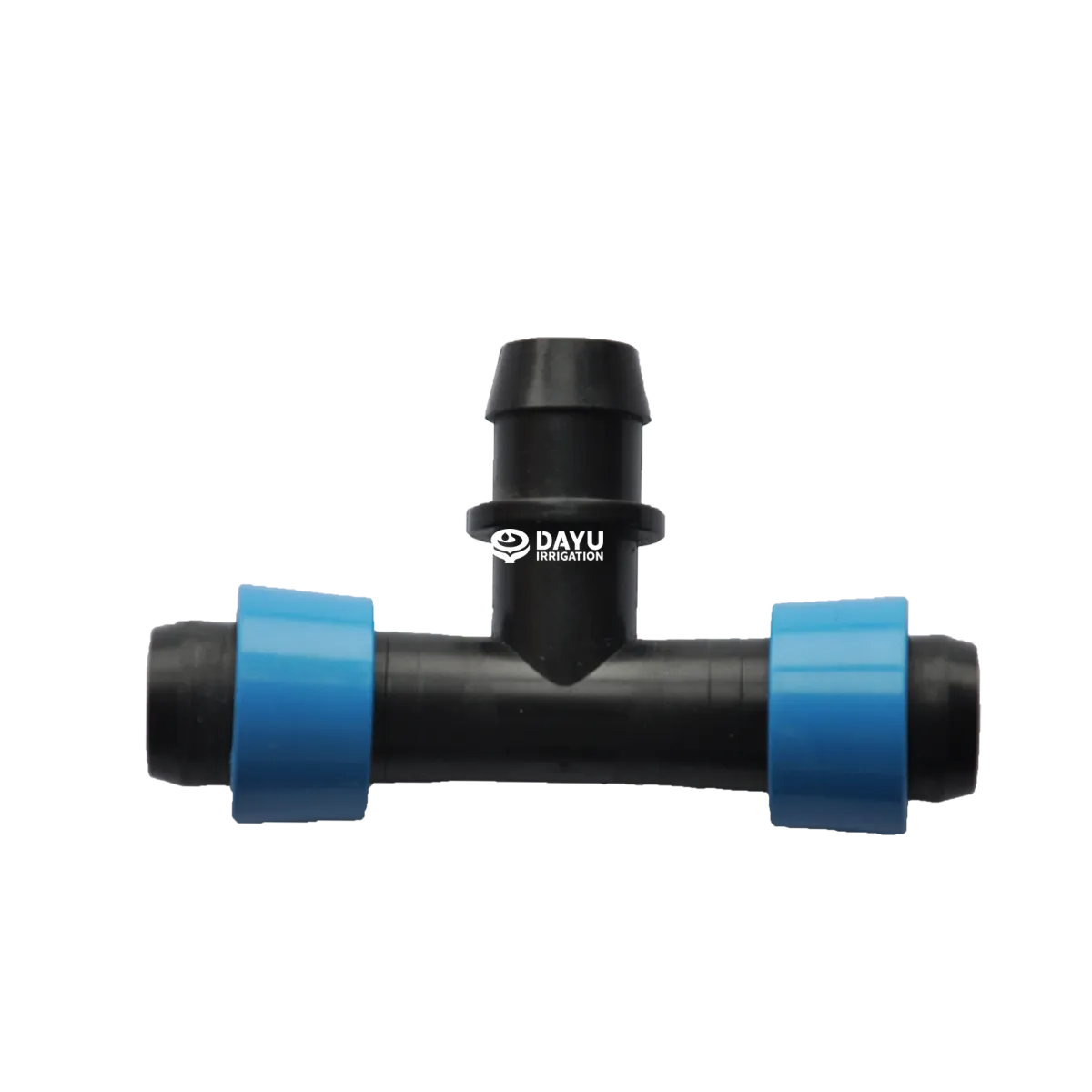

Pull Buckle bypass | 16Φ | Connect the main pipeline to the drip tape |

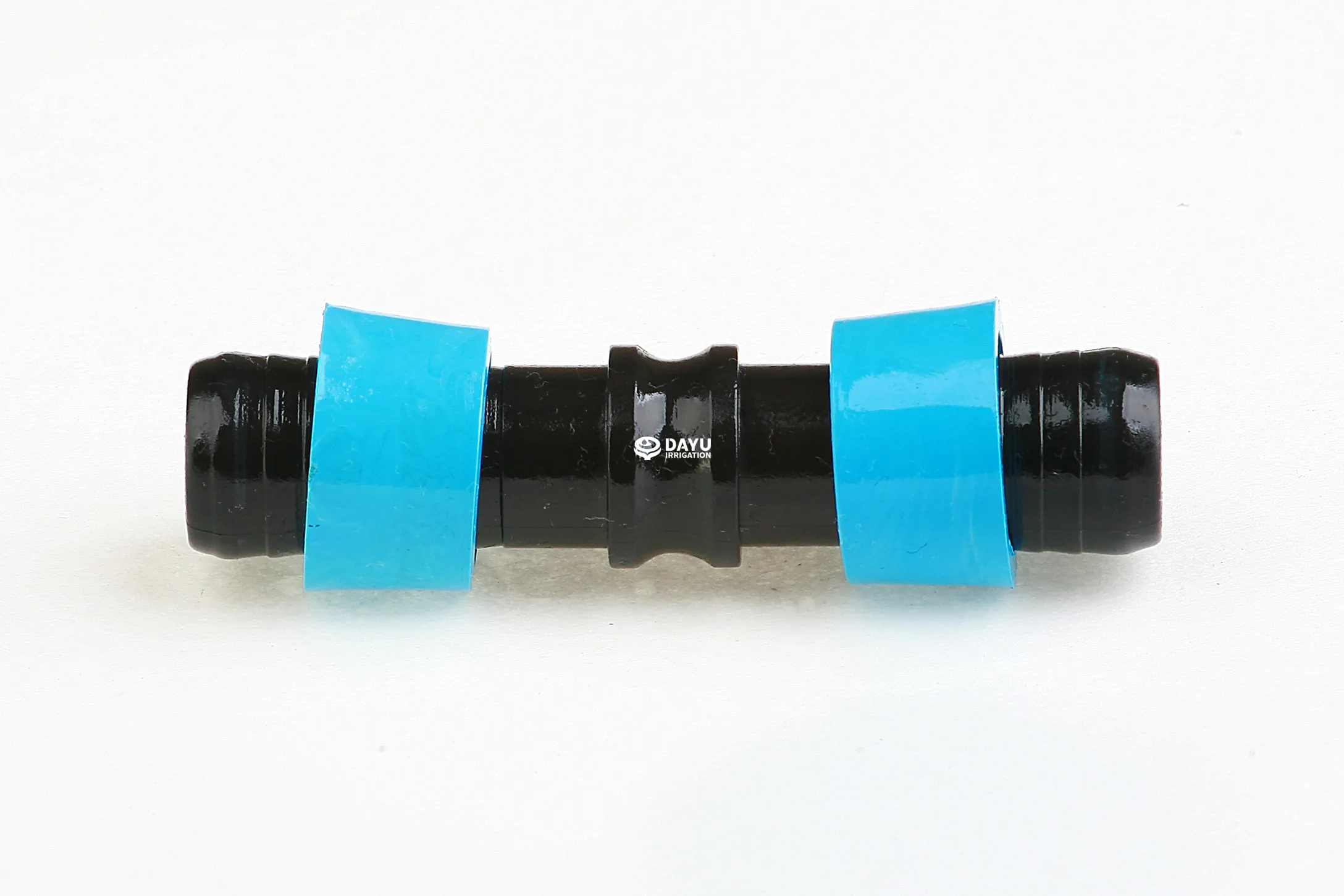

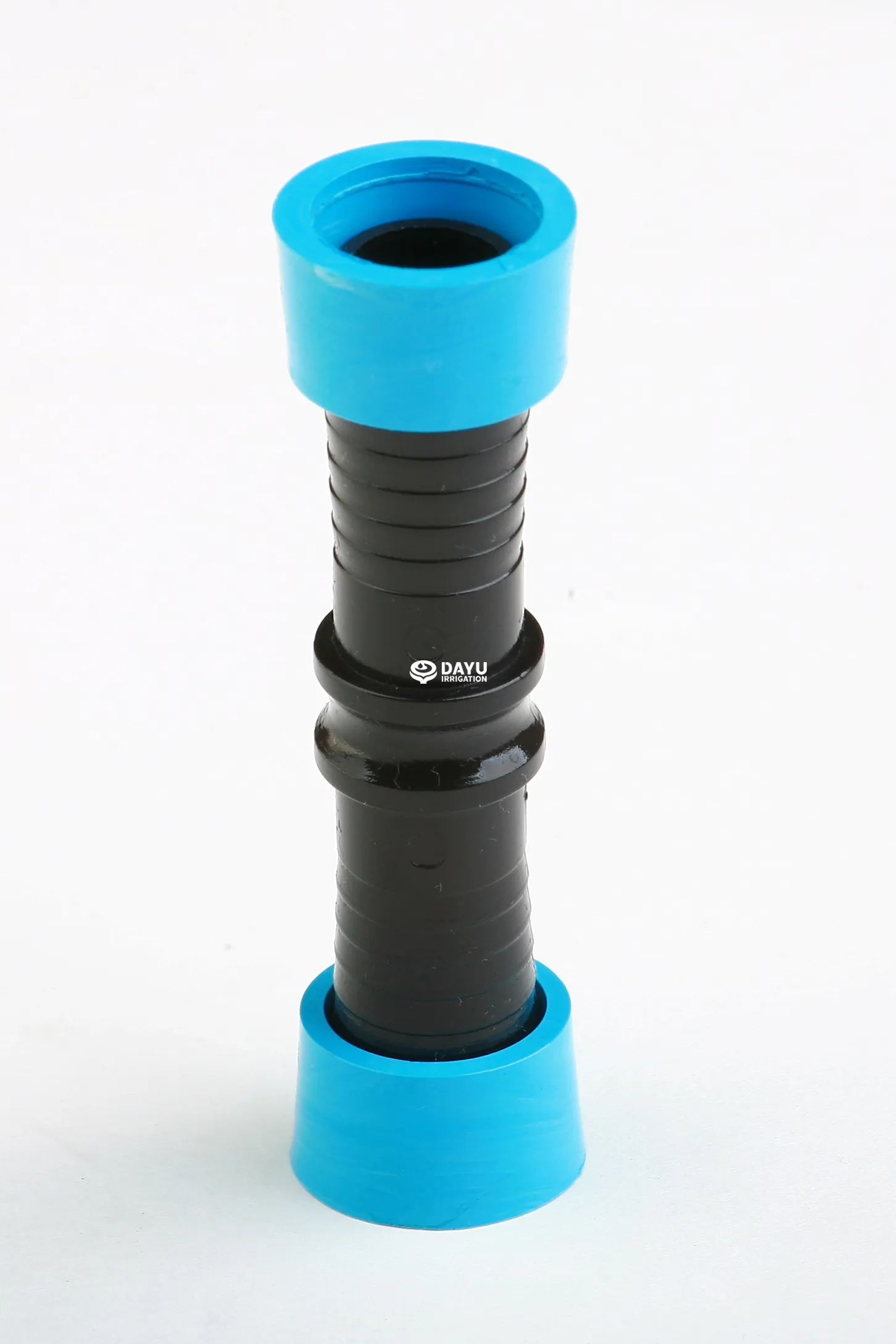

Pull Buckle direct | 16Φ | Used to connect and repair driplines |
Pull Buckle barbed direct | 16Φ | Used to connect driplines and PE pipe |
Pull Buckle outer wire direct | 16Φ*1/2＇＇ | Used to connect driplines and internal threaded pipe fittings |
Pull Buckle plug | 16Φ | For sealing the end of driplines |

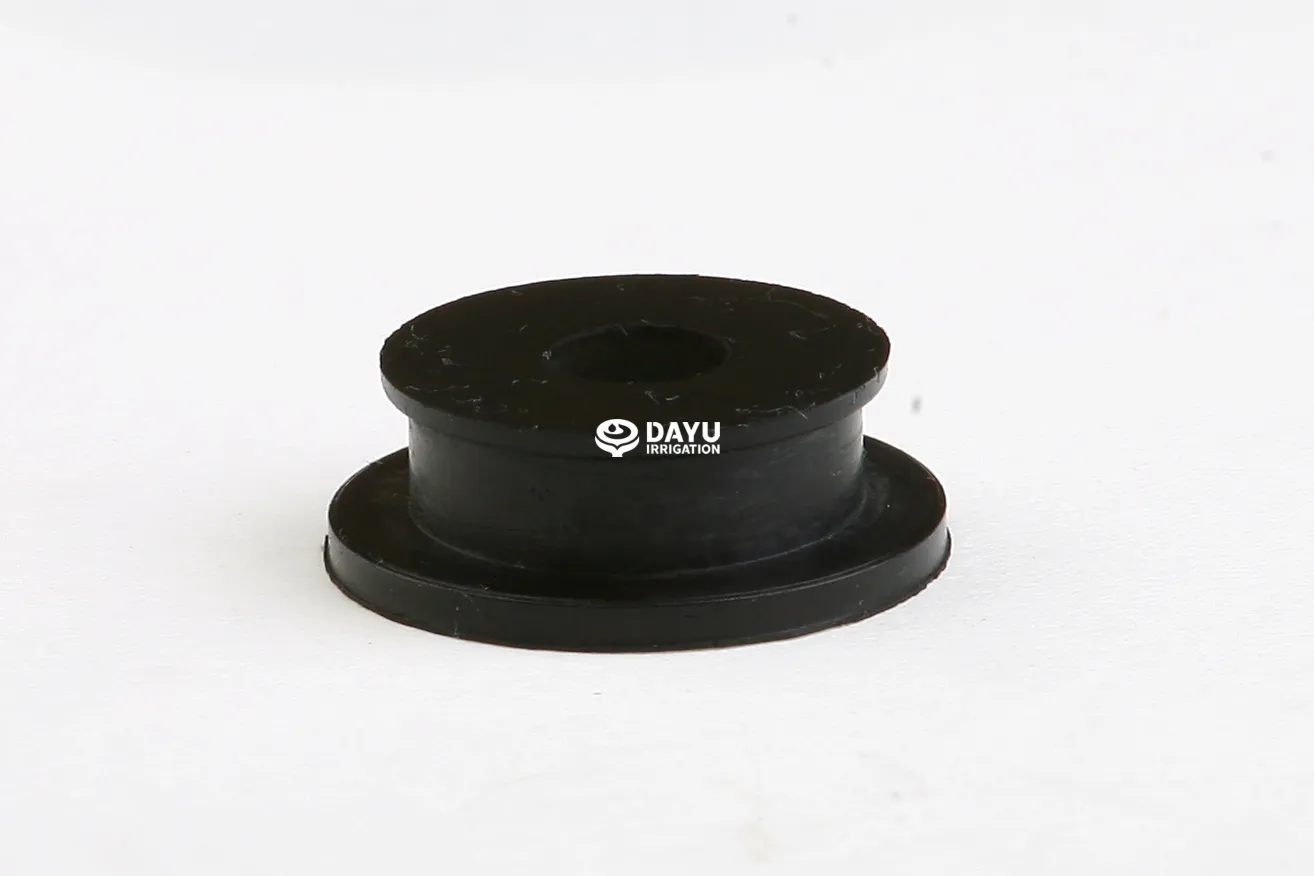

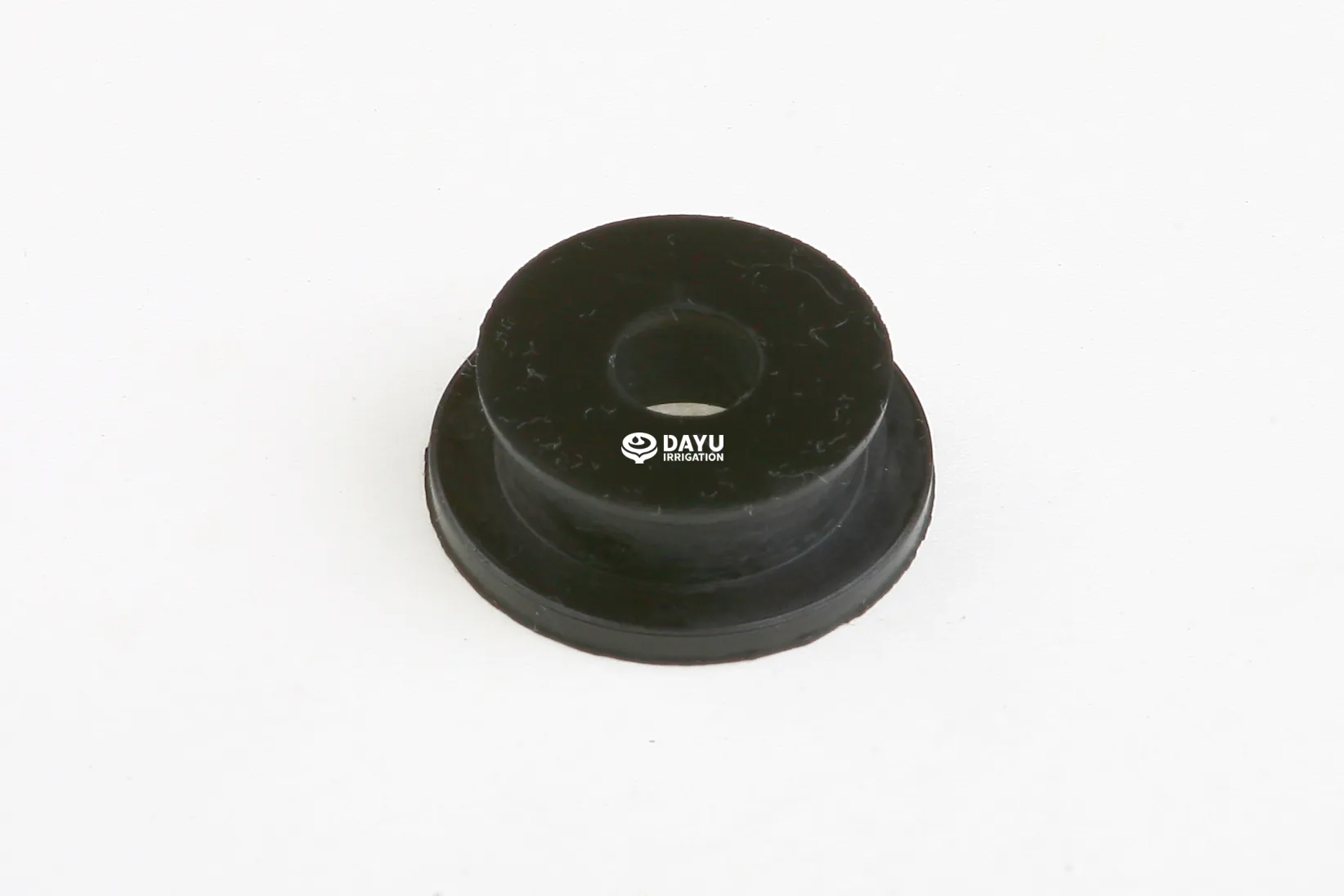

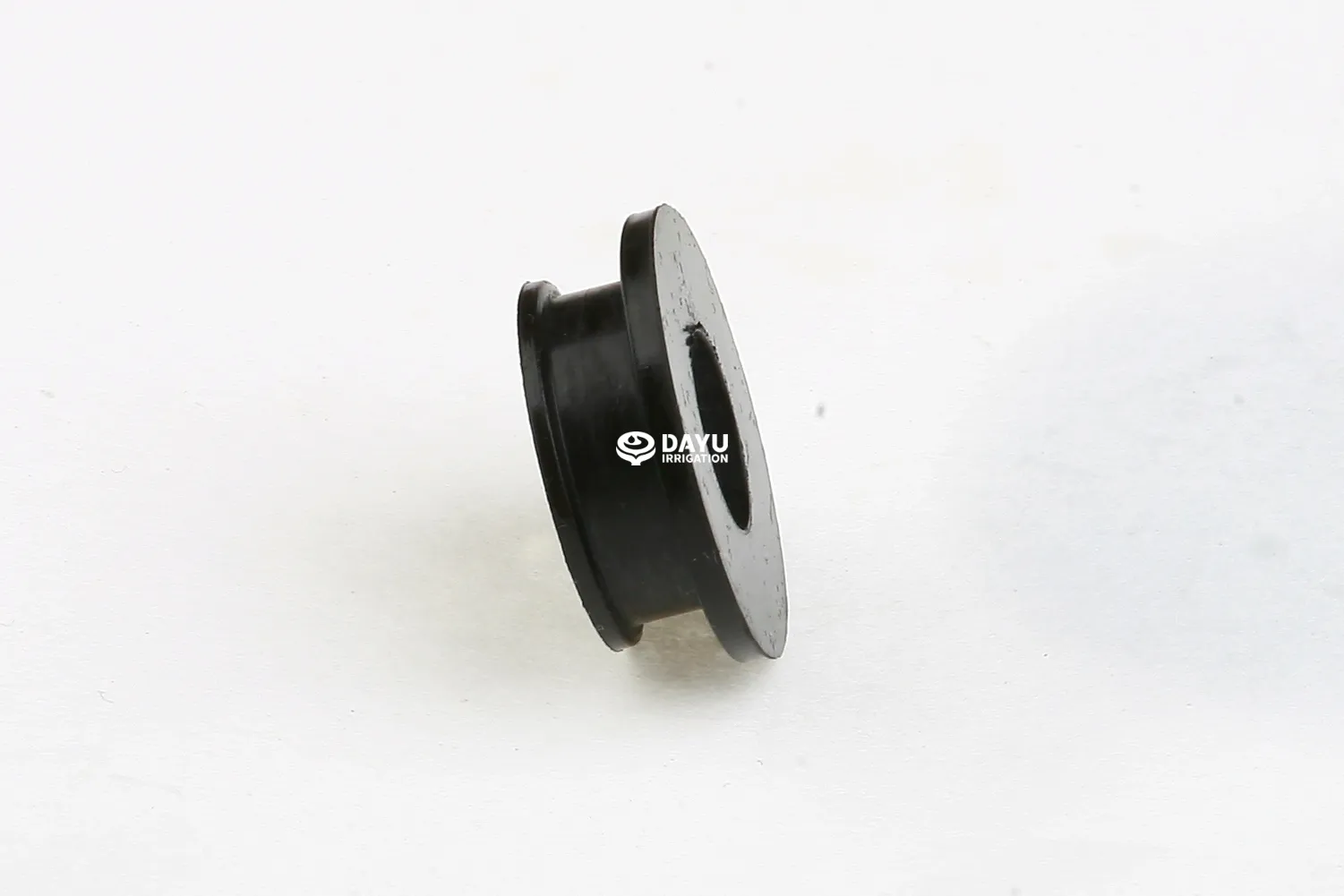

I-shaped rubber ring | 16Φ/20Φ | Used at the connection between pipe fittings and main pipe, anti-drip |
T type rubber ring | 16Φ/20Φ | Used at the connection between pipe fittings and main pipe, anti-drip |
Product advantages:
Drip irrigation accessories are made of new materials with tight fit; they are injection molded using precision molds with good water sealing performance; the products are diverse in types and structures, the structures are scientific and reasonable, and the installation is convenient, which can meet the various needs of users for drip irrigation accessories.
